    JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JY09M TO 252
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 1000sets/day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching

    JUYI N Channel Enhancement Mode Power MOSFET 70V/90A, Low On-Resistance, Fast Switching, Wide Applications


    GENERAL DESCRIPTION
    The JY09M utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
    FEATURES
    ● 70V/90A, RDS(ON) =6.2mΩ@VGS=10V(typical)
    ● Fast switching and reverse body recovery
    ● Fully characterized avalanche voltage and current
    ● Excellent package for good heat dissipation
    APPLICATIONS
    ● Power Switching application
    ● Hard switched and high frequency circuits
    ● Uninterruptible power supply

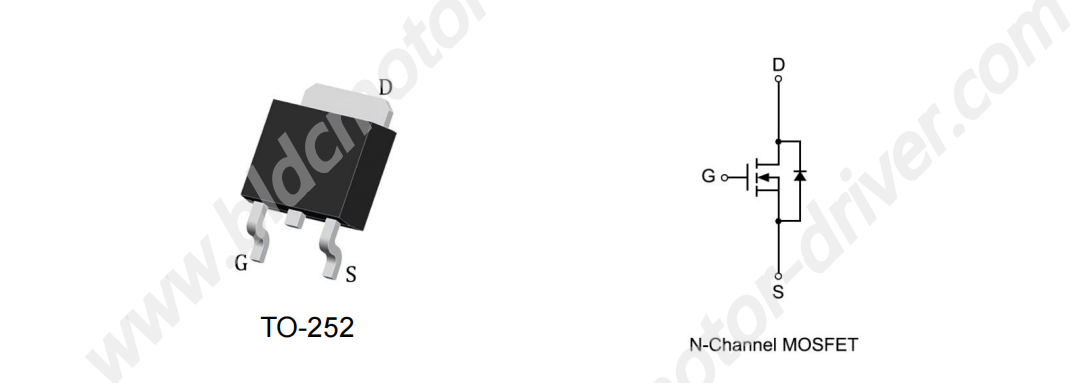

    PIN DESCRIPTION
    Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
    Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
    Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
    Typical electrical and thermal characteristics
