    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JYQD-YL02D
    Price : negotiable
    Payment Terms : T/T,L/C,Paypal
    Supply Ability : 1000 sets/day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory

    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory


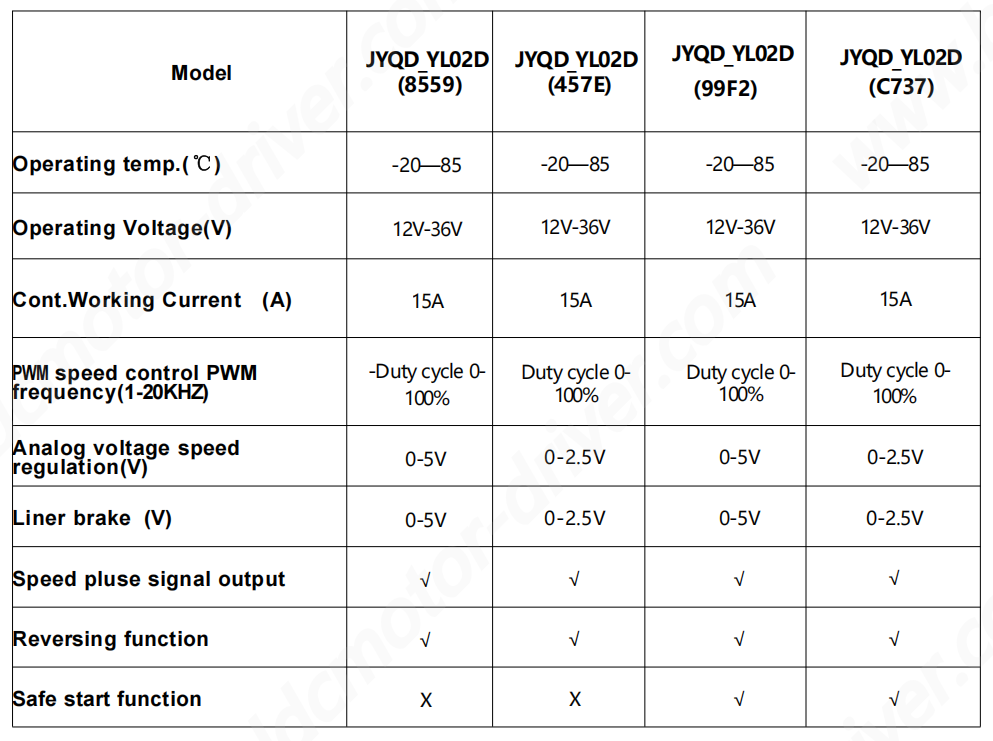

    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory

    Application Areas:

    Remote control electric vehicles, electric scooters, remote control wheelchairs, medical equipment, amusement rides, robots, etc.

    Application Notes:

    1. Motor Compatibility: Ensure that the voltage and power parameters of the motor do not exceed the specified limits of this driver board.
    2. Motor Type: This driver is designed for three-phase brushless DC motors with Hall sensors. However, not all three-phase brushless


      DC motors are directly compatible. Only motors with a 120-degree Hall electrical angle can be used.
    3. Braking Function: The JYQD_YL02D features regenerative braking, which generates energy during deceleration.


      Do NOT use the braking function when testing with a regulated power supply to prevent damage.
    4. 5V Output Port: The 5V output on the driver board can supply up to 300mA of current for microcontroller control.
    5. Heat Dissipation & Insulation: Ensure proper insulation and heat dissipation for power components on the driver board during installation.
    6. Safety Startup: After power-on, the speed control will be disabled until reset. To enable speed control, either reset the speed controller

      or activate the brake function.


    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory


    DRIVER BOARD DIAGRAM

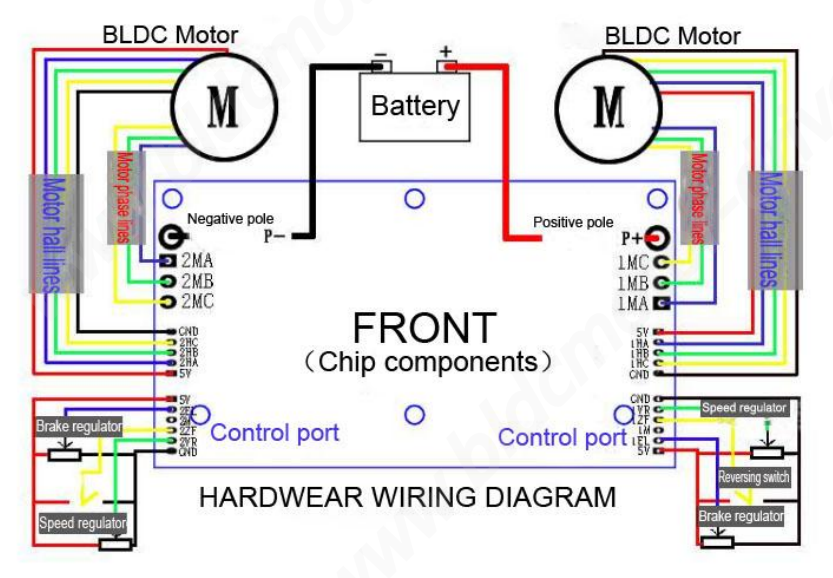

    Wiring Diagram

    1. Control Ports (Left Side, 2.0mm Pitch)

    • 5V: Internal 5V output from the control board, capable of supplying <300mA current.
    • 2EL: Braking control port. Regenerative linear braking with energy recovery. Analog voltage input: 0-5V. Higher voltage (0-100%) increases

    braking force at constant speed.

    • 2M: Speed signal output port. Pulse frequency is proportional to motor speed (pulse ratio depends on motor specifications).
    • 2Z/F: Forward/reverse control port. Hard switching: Connect to 5V or leave floating for forward rotation; connect to GND for reverse rotation.
    • 2VR: Speed control port. Analog voltage speed regulation 0V-5V (effective range 0-2.5V), linear speed regulation from low to high. External

    PWM speed regulation requires common ground with the driver board.

    • GND: Internal ground of the control board.


    2. Hall Sensor Ports (Left Side, 2.0mm Pitch)

    • GND: Hall sensor power negative.
    • 2Hc: One of the motor Hall sensor signals.
    • 2Hb: One of the motor Hall sensor signals.
    • 2Ha: One of the motor Hall sensor signals.
    • 5V: Hall sensor power positive.


    3. Power Ports (Left Side)

    • P-: DC power supply negative.
    • MA: One of the motor three-phase wires.
    • MB: One of the motor three-phase wires.
    • MC: One of the motor three-phase wires.


    4. Control Ports (Right Side, 2.0mm Pitch)

    • GND: Internal ground of the control board.
    • 1VR: Speed control port. Analog voltage speed regulation (0V-5V, effective range 0-2.5V), linear speed control from low to high.

    External PWM speed control requires a common ground with the driver board.

    • 1Z/F: Forward/reverse control port. Hard switching: Connect to 5V or leave floating for forward rotation; connect to GND for

    reverse rotation.

    • 1M: Speed signal output port. Pulse frequency is proportional to motor speed (pulse ratio depends on motor specifications).
    • 1EL: Braking control port. Regenerative linear braking with energy recovery. Analog voltage input: 0-5V. Higher voltage (0-100%)

    increases braking force at constant speed.

    • 5V: Internal 5V output from the control board, capable of supplying <300mA current.


    5. Hall Sensor Ports (Right Side, 2.0mm Pitch)

    • 5V: Hall sensor power positive.
    • 1Ha: One of the motor Hall sensor signals.
    • 1Hb: One of the motor Hall sensor signals.
    • 1Hc: One of the motor Hall sensor signals.
    • GND: Hall sensor power negative.


    6. Power Ports (Right Side)

    • P+: DC power supply positive.
    • 1MC: One of the motor three-phase wires.
    • 1MB: One of the motor three-phase wires.
    • 1MA: One of the motor three-phase wires.


    Notes:

    1. Motor Wire Length: Avoid excessive length for motor wires, as long cables may cause signal interference.

    2. Heat Dissipation: Ensure proper heat dissipation during continuous high-current operation.


    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory


    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory


    Dimensional Drawing

    JUYI pwm 3 phase brushless dc balanced dual motor controller driver speed control factory
