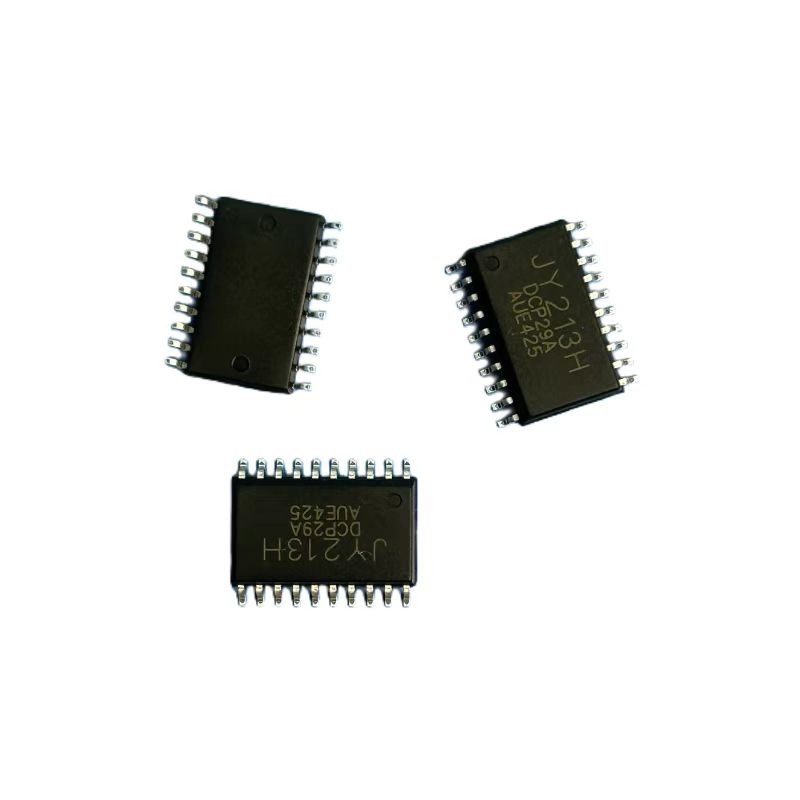

    3 Phase High Voltage Gate Driver IC 3.3V 5V 15V Input Logic Compatible Built In Deadtime

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JY213H
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 1000sets/day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    3 Phase High Voltage Gate Driver IC 3.3V 5V 15V Input Logic Compatible Built In Deadtime

    3-Phase High Voltage Gate Driver IC 3.3V, 5V,15V input logic Compatible Built-in deadtime


    3 Phase High Voltage Gate Driver IC 3.3V 5V 15V Input Logic Compatible Built In Deadtime


    (⇒ Pls Contact us if you want to get more detail informations of JY213H !!!!)


    DESCRIPTION

    The JY213H is a high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels for 3-phase gate driver. Built-in deadtime protection and Shoot-through protection that prevent half-bridge breakdown. The UVLO circuits prevent malfunction when VCC and VBS are lower than the specified threshold voltage. 600V high-voltage process and common-mode noise canceling technique provide stable operation of high-side drivers under high-dv/dt noise circumstances.
    FEATURES
    ♦ Integrated 600V half-bridge high side driver
    ♦ Driver up to 3-phase half-bridge gates
    ♦ Built-in deadtime control
    ♦ Shoot-through protection
    ♦ Under voltage lockout for VCC and VBS
    ♦ 3.3V, 5V,15V input logic Compatible
    ♦ Built-in input filter
    ♦ -40℃ to 125℃ operating range
    ♦ Common-Mode dv/dt Noise Canceling Circuit

    APPLICATION
    3-phase Motor Inverter Driver
    Air Condition
    Washing Machines

    BLOCK DIAGRAM
    TYPICAL APPLICATION CIRCUIT
    ORDER INFORMATION
    PIN DESCRIPTION
