    JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JY11M
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 1000sets/day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

    JUYI N Channel Super Trench Power MOSFET with fast switching and reverse body recovery


    JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery


    GENERAL DESCRIPTION
    The product utilizes the latest super trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
    FEATURES
    ● 100V/155A, RDS(ON) =3.5mΩ@VGS=10V(Typical)
    ● Fast switching and reverse body recovery
    ● Fully characterized avalanche voltage and current
    ● Excellent package for good heat dissipation
    APPLICATIONS
    ● DC/DC converters
    ● Hard switched and high frequency circuits
    ● Synchronous rectification

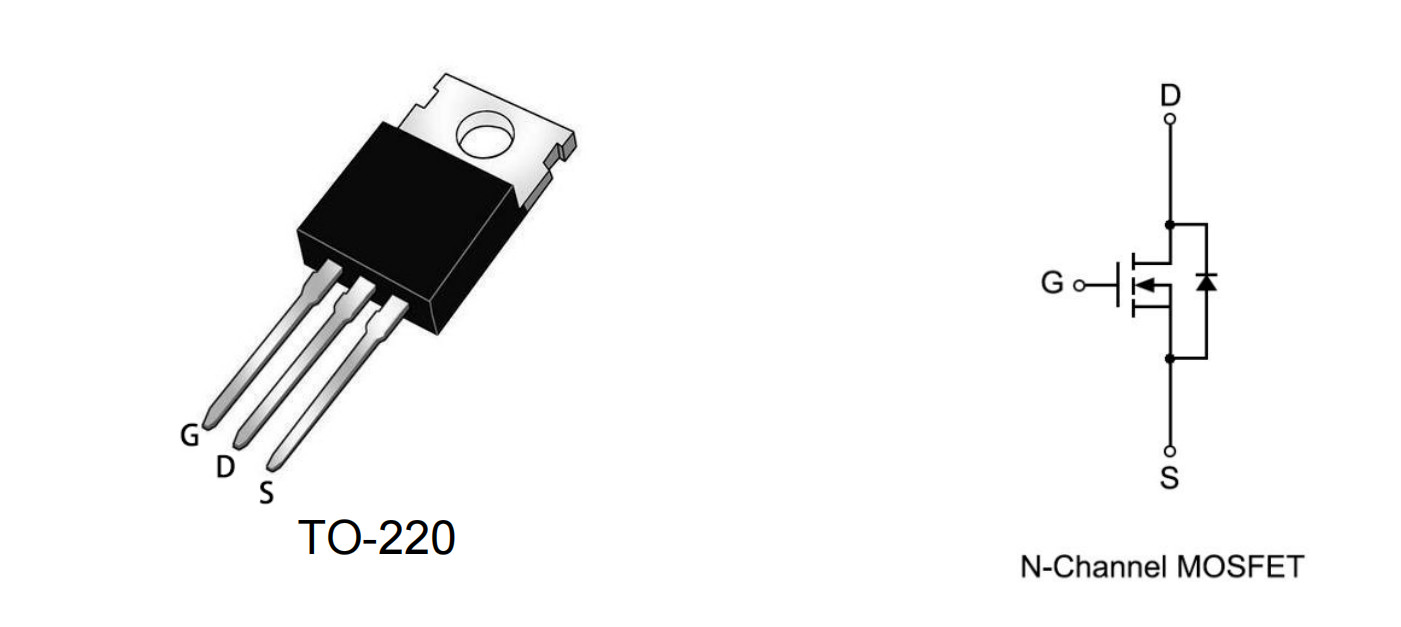

    PIN DESCRIPTION
    JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery
    Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
    Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
    DOWNLOAD THE USER MANUAL OF JY11M
