    JY2605M Dual N Channel Enhancement Mode Power Surface Mount MOSFET For BLDC Motor Driver

    JY2605M Dual N Channel Enhancement Mode Power MOSFET For BLDC Motor Controller
    GENERAL DESCRIPTION
    The product utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
    FEATURES
    ● 60V/50A, RDS(ON) =14mΩ@VGS=10V(typical)
    ● Fast switching and reverse body recovery
    ● Fully characterized avalanche voltage and current
    ● Excellent package for good heat dissipation
    APPLICATIONS
    ● Power Switching application
    ● Synchronous rectification
    ● Motor drive for 12V-24V Systems

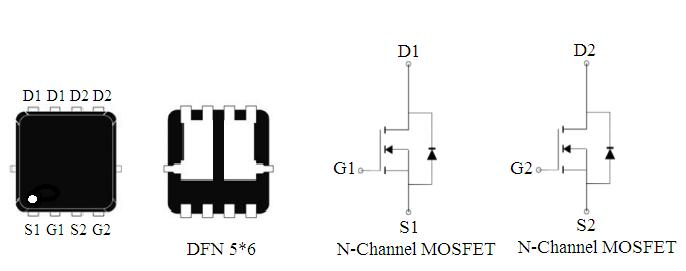

    PIN DESCRIPTION
    Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
    SymbolParameterLimit

    Unit

    VDSDrain-Source Voltage

    60


    V
    VGSGate-Source Voltage

    ±20


    V
    ID

    Continuous Drain

    Current

    Tc=25ºC50A
    Tc=100ºC35

    IDM


    Pulsed Drain Current185A

    PD


    Maximum Power Dissipation65W

    TJ TSTG


    Operating Junction and Storage Temperature Range-55 to +175ºC

    RθJC

    Thermal Resistance-Junction to Case2.3ºC/W

    Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
