    JUYI Motor Tachometer Module Adjust Number Of Pulses

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JYQD-ZSJ-V2.3
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal
    Supply Ability : 1000sets/day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    JUYI Motor Tachometer Module Adjust Number Of Pulses


    JUYI tachometer, Motor tachometer module ,The motor tachometer can adjust the number of pulses



    Description:
    The tachometer JYQD-ZSJ-V2.3 can be used directly with JYQD series motor drivers with the small size and stable performance. It can also be used in various speed measurement occasions.
    Application notes:
    1. When powering up the tachometer, hold down the Set button until the number "6" appears on the screen.
    2. Then press the "Plus" or "Minus" button, and the number you need will be displayed on the screen.
    3. When the required number is set, stop the operation. After saving for about 10 seconds, return to zero.
    4. After the tachometer is powered on again, the set number will be directly displayed. If it returns to zero after 3 seconds, it proves that the setting is correct.
    Button Description
    JUYI Motor Tachometer Module Adjust Number Of Pulses
    Note: Set the number of pulses according to the number of pulses in one revolution of the motor.

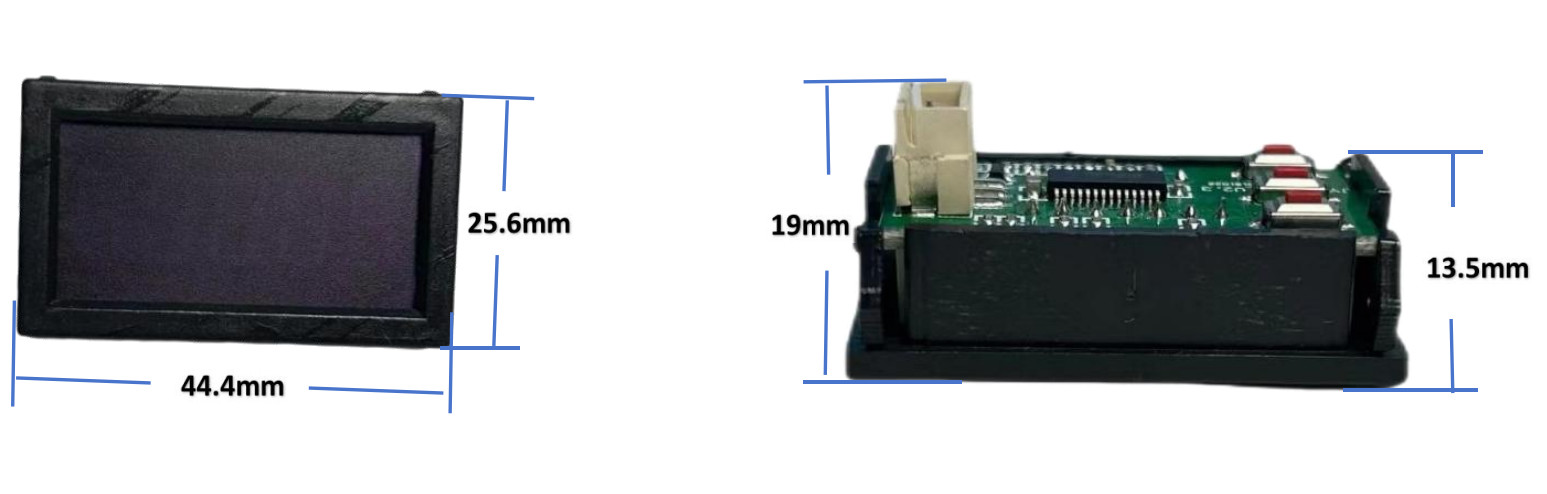

    Dimensional Drawing
    Outline dimension: 44.4*25.6*19mm
    Screen Size: 36.5*17.7mm
    Dimensions of mounting holes: 42*25.5mm

    JUYI Motor Tachometer Module Adjust Number Of Pulses


    DOWNLOAD THE USER MANUAL OF JYQD-ZSJ-V2.3

    JYQD-ZSJ-V2.3--English.pdf
